Multi-Purpose Thermal Monoculars

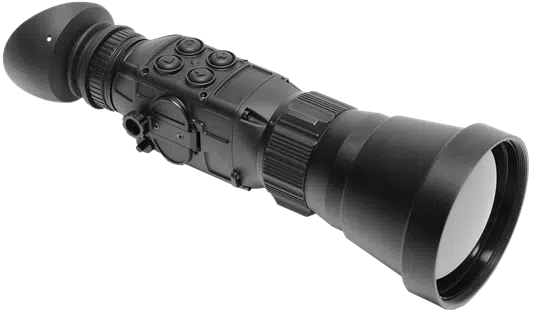

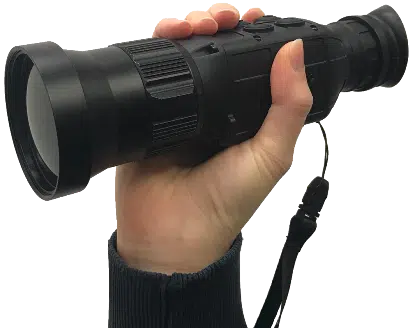

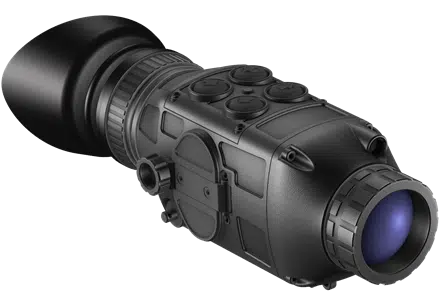

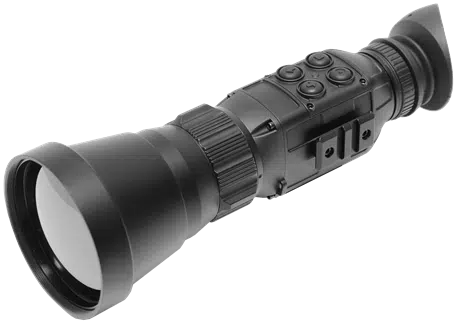

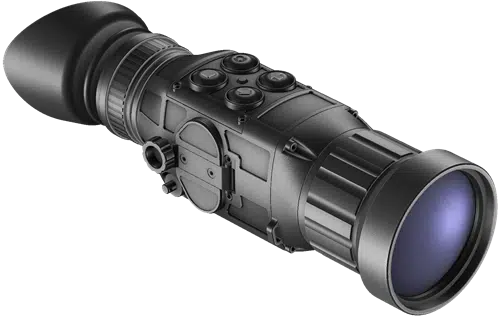

Presenting the TI-GEAR-M, a pinnacle of professional-grade thermal monocular meticulously engineered for a multitude of applications, with a primary focus on reconnaissance and tactical surveillance across medium and long distances.
TI-GEAR-M Specifications
- FPA Refresh Rate: 9Hz or 50Hz
- 12-micron and 17-micron FPA Options
- Digital Zoom: 2X, 4X
- Display: Full Size: 0.6-Inch, AMOLED, Colour, 800ร600
- Imaging Modes: Monochrome + 8 Colour Palettes
- Digital Video Recorder: Optional โ Built-In or External

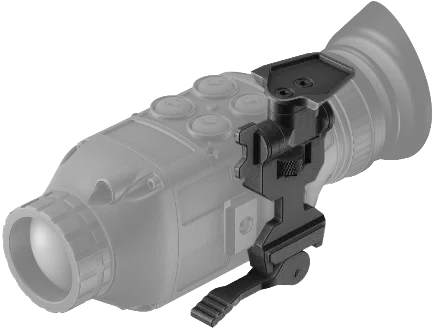

- Helmet-Mountable: Yes (25mm models)

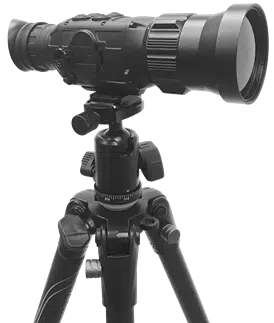

- Tripod-Moutable
- Compass: Optional
- Inclinometer: Optional
- Gyroscope: Optional
- Power Source: 2x CR123 and External (e.g. MVP-240โข)
- Battery Life: Up to 7 hours on 2xCR123 or up to 15 hours with MVP-240โข
- Operating Temperature: -40ยฐC .. +50ยฐC
- Manufacturerโs Warranty: 7 Years, Limited
At the core of the TI-GEAR-M resides the latest generation sensor, embodying GSCI’s unwavering dedication to cutting-edge technology. Complemented by GSCI’s proprietary hardware and software solutions, this sensor yields exceptional image quality, while offering unique tools that bestow tactical advantages and ensure user safety.
Unyielding in its durability, the TI-GEAR-M is fully dust- and waterproof, surpassing the demanding standards set by modern benchmarks. This robust and reliable tool thrives in the face of long-term, intensive use, exhibiting unwavering performance across any environment, irrespective of challenging lighting conditions or inclement weather scenarios.
The TI-GEAR-M epitomizes GSCI’s commitment to equipping professionals with an unrivaled thermal imaging monocular, tailored to deliver exceptional performance during reconnaissance operations and tactical surveillance missions. It sets new standards for reliability and image quality, empowering users to achieve unparalleled situational awareness.
Most Popular Options & Accessories
- MTARโข-HUDย โ Multi-Task Heads-Up Display
- MVP-240โขย โ Multi-Voltage Battery Pack
- HMD-800-MODย โ Portable Display Unit

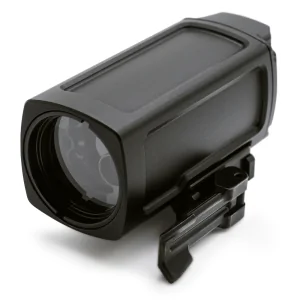

- QRF-4500โขย โ Advanced Laser Rangefinder
- TRC120ย โ Remote Control
- DVR-INT – Internal Video Recorder
Looking to purchase the TI-GEAR-M? Find a dealer near you.
Available Models
TI-GEAR-M325 17ยตm (Situational Awareness)
Lens: 25mm | Sensor: 384x288 pixels | Field Of View: 14.9ยฐ x 11.2ยฐ | DRI (Human): 830m / 310m / 165m
TI-GEAR-M625 17ยตm (Situational Awareness)
Lens: 25mm | Sensor: 640x480 pixels | Field Of View: 24.5ยฐ x 18.5ยฐ | DRI (Human): 830m / 310m / 165m

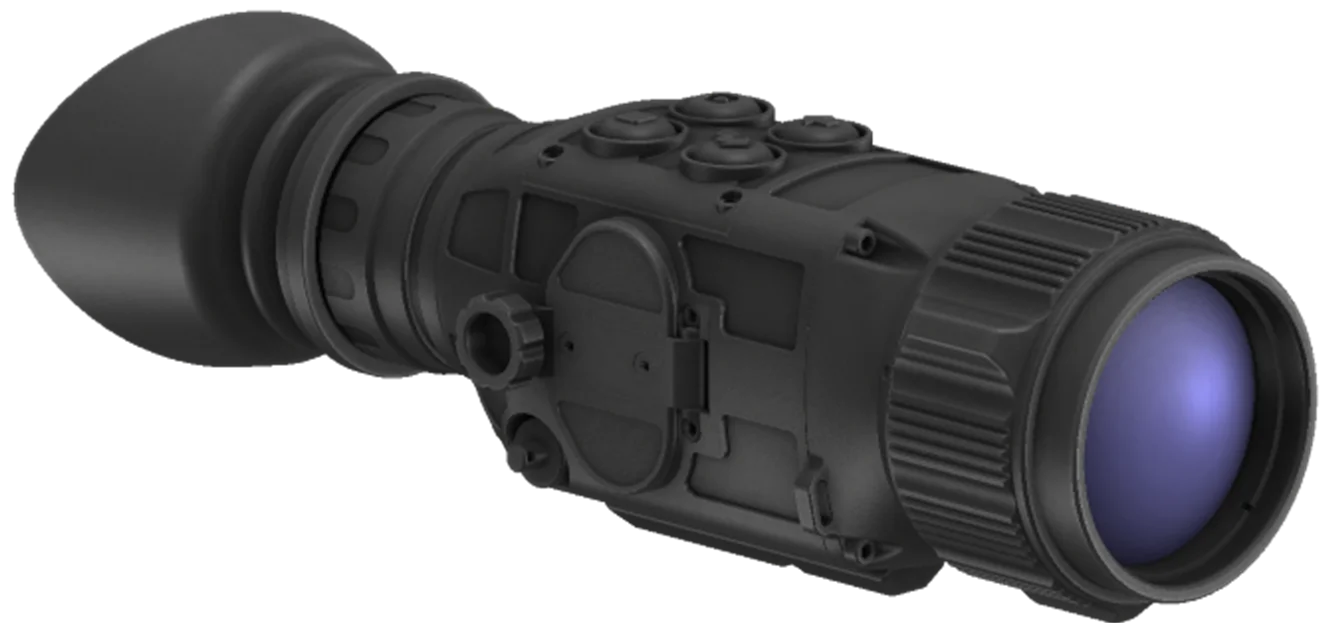

TI-GEAR-SA3M 12ยตm (Situational Awareness)
Lens: 35mm | Sensor: 384x288 pixels | Field Of View: 8.3ยฐ x 6.2ยฐ | DRI (Human): 1650m / 615m / 330m
TI-GEAR-SA6M 12ยตm (Situational Awareness)
Lens: 35mm | Sensor: 640x512 pixels | Field Of View: 12.5ยฐ x 9.4ยฐ | DRI (Human): 1650m / 615m / 330m
TI-GEAR-M350F 17ยตm (Medium-Range)
Lens: 50mm | Sensor: 384x288 pixels | Field Of View: 7.5ยฐ x 5.6ยฐ | DRI (Human): 1660m / 625m / 330m
TI-GEAR-M650F 17ยตm (Medium-Range)
Lens: 50mm | Sensor: 640x480 pixels | Field Of View: 12.4ยฐ x 9.3ยฐ | DRI (Human): 1660m / 625m / 330m
TI-GEAR-MR3M 12ยตm (Medium-Range)
Lens: 50mm | Sensor: 384x288 pixels | Field Of View: 5.3ยฐ x 3.9ยฐ | DRI (Human): 2360m / 885m / 470m
TI-GEAR-MR6M 12ยตm (Medium-Range)
Lens: 50mm | Sensor: 640x512 pixels | Field Of View: 8.7ยฐ x 6.5ยฐ | DRI (Human): 2360m / 885m / 470m
TI-GEAR-M375 17ยตm (Long-Range)
Lens: 75mm | Sensor: 384x288 pixels | Field Of View: 5.0ยฐ x 3.7ยฐ | DRI (Human): 2500m / 935m / 500m
TI-GEAR-M675 17ยตm (Long-Range)
Lens: 75mm Sensor: 640x480 pixels Field Of View: 8.3ยฐ x 6.2ยฐ DRI (Human): 2500m / 935m / 500m
TI-GEAR-LR3M 12ยตm (Long-Range)
Lens: 75mm | Sensor: 384x288 pixels | Field Of View: 3.5ยฐ x 2.6ยฐ | DRI (Human): 3540m / 1325m / 705m
TI-GEAR-LR6M 12ยตm (Long-Range)
Lens: 75mm | Sensor: 640x512 pixels | Field Of View: 5.8ยฐ x 4.3ยฐ | DRI (Human): 3540m / 1325m / 705m
TI-GEAR-M3100 17ยตm (Ultra Long-Range)
100mm Objective Lens 384x288 FPA
TI-GEAR-M6100 17ยตm (Ultra Long-Range)
100mm Objective Lens 640x480 FPA
TI-GEAR-ULR3M 12ยตm (Ultra Long-Range)
Lens: 100mm | Sensor: 384x288 pixels | Field Of View: 2.6ยฐ x 2.0ยฐ | DRI (Human): 4720m / 1770m / 945m
TI-GEAR-ULR6M 12ยตm (Ultra Long-Range)
Lens: 100mm | Sensor: 640x512 pixels | Field Of View: 4.4ยฐ x 3.3ยฐ | DRI (Human): 4720m / 1770m / 945m
